Mode 3 kabel 32A 3-phase , type 2 (10 m ) 22 kwh (B)

https://www.digitusnordic.com/web/image/product.template/256/image_1920?unique=dc052a3

kr 0,00 0.0 NOK kr 0,00 eks.mva

kr 1 890,00 eks.mva

Ta kontakt for priser

Denne kombinasjonen eksisterer ikke.

Ladekabel alle Type 2 produkter Ladekabel Type 2

Intern referanse: BUDM3T2A32P3M10

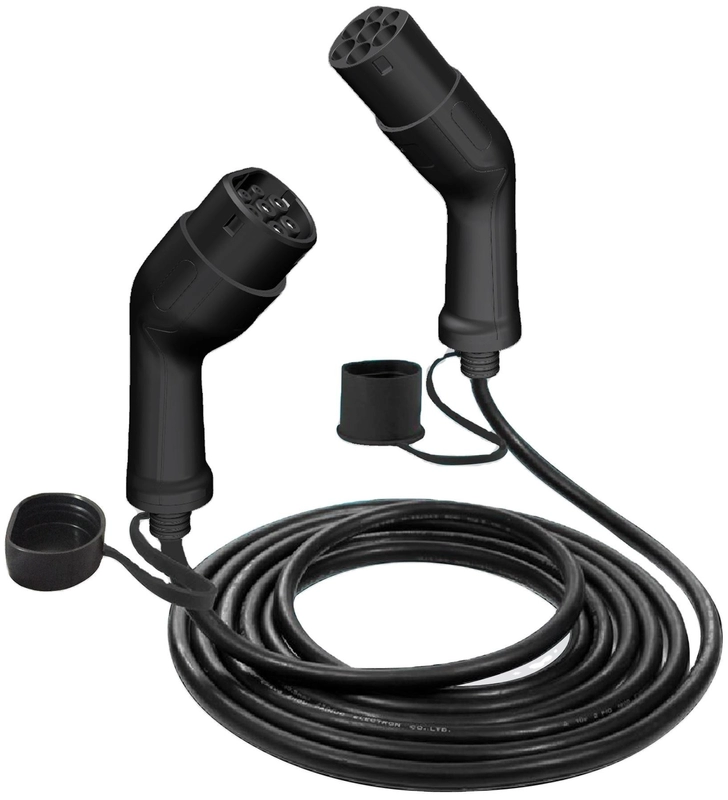

Mode 3 Kabel 32A 3-fase (22 kwh), type 2, (10 m) – TPU kvalitet (bedre/dyre kvalitet enn TPE)

Dette er vår budsjett serie og presenterer god kvalitet til markedsledende lavpris.


Product Specification:

Model: BUDM3T2A32P3M10

Standard: Type 2 mode 3

Certificate: TUV, CE

Current: 32A (22 kwh) 3-fase

Length: 10 meter

IP55

Colour: Black

Cable: Straight

Material: TPU

EAN: 7090057831156



Package measurement and weight:

Item No: BUDM3T2A32P3M10

Packages: 1 carton inner box

Packing Size: 42*38*8(cm)

Weight: 5kg

Product professional data:

Rated Current:16A/32ARated

Voltage:250V/ 480V AC

Casing Protection Rating:IP55

Casing Material:Thermoplastic

Cable Material:TPU

Certification:UKCA / CB/ TUV/ CE

Warranty: 24 months/10000 mating cycles

Operating Environment Temperature:-30℃- +50℃
